GC-1 Ground Control
CAD believes that one of the key reasons so many digital audio products "sound digital" is due to this high frequency noise. From the very beginning of CAD we have worked hard to reduce unwanted noise in all our products. Materials and technologies that are used in our 1543 MKII DAC, USB Cables and CAT are included in the GC1, GC3 and GC-R Ground Controls.
The Ground Control contains a mixture of materials that converts high frequency energy into heat. Our research has found that to achieve the best sound quality the GC1, GC3 & GC-R needed to be effective over a large frequency range. This was not easy to accomplish! The CAD Ground Controls will reduce noise from about 1MHz up into the GHz range.
Most audio engineers put a lot of effort into making sure the positive and negative rails of their DC power supplies have low ripple and noise, adequate bandwidth, etc. but typically not much thought is put into the signal ground plane.
CAD believes that reducing high frequency noise on Signal Ground and Earth improves sound quality.
Unfortunately there isn\'t a common industry accepted technique for measuring noise levels on Signal Ground or Earth. A common measurement is Signal to Noise (S/N) ratio. S/N is the maximum output of a device (0dB) divided by the minimum output of a device (the noise). The reference for both of these measurements is Signal Ground. S/N measurement is not the whole story because it does not tell you anything about noise on the Signal Ground. You can have a very good S/N measurement and in reality the system can have considerable noise on the Ground side.
The CAD GC1, GC3 & GC-R Ground Controls can be connected to any audio product that has an unused output or input connection. If your DAC, streamer, computer, phone stage, preamplifier, amplifier, CD Player, NAS, etc. has a spare output/input connector like an RCA, XLR, Spade, USB or BNC you can connect the Ground Control to that. We supply a range of interconnects with various connectors. The other end of the connector has a single 4mm banana plug that attaches to the Ground Control.

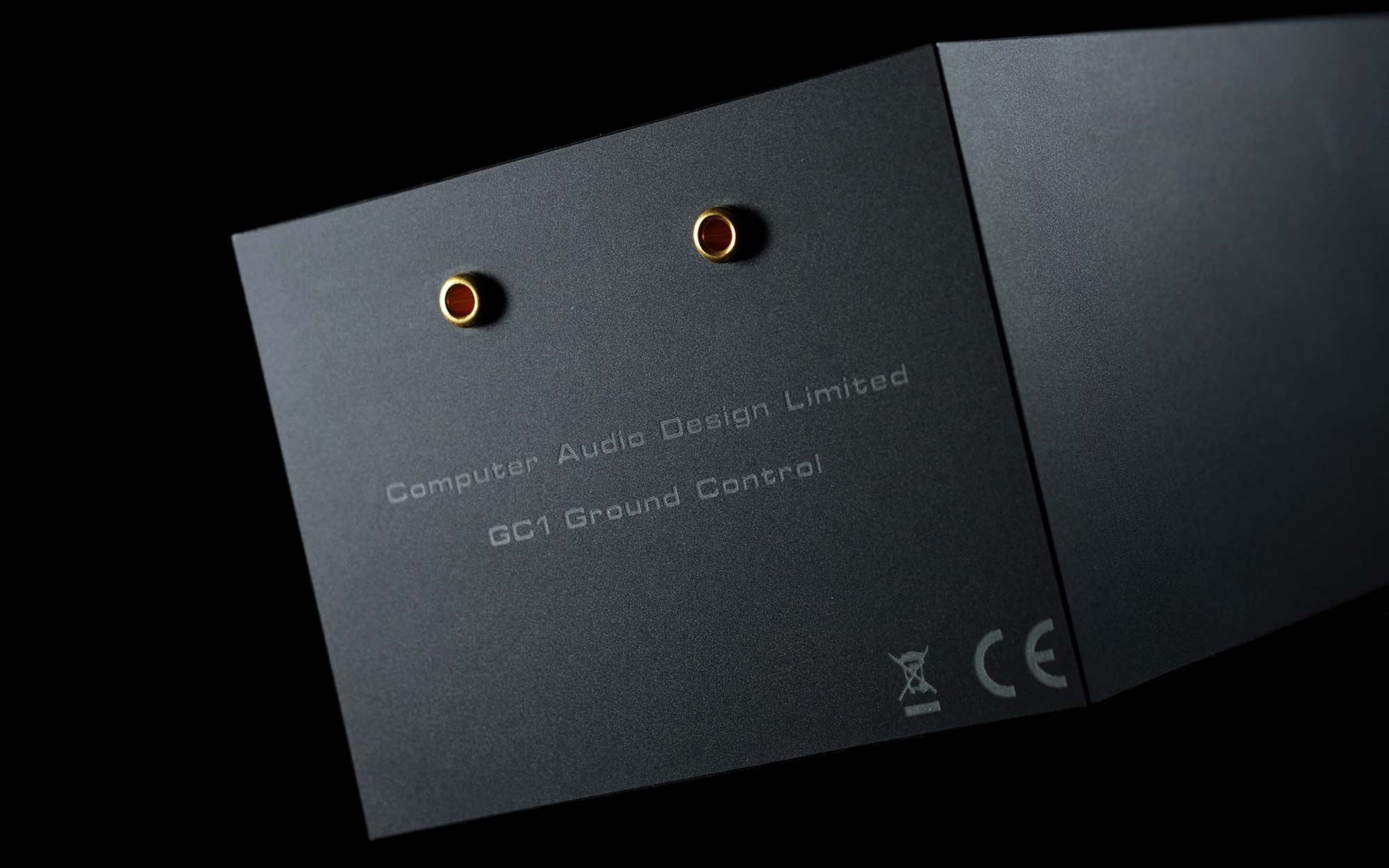

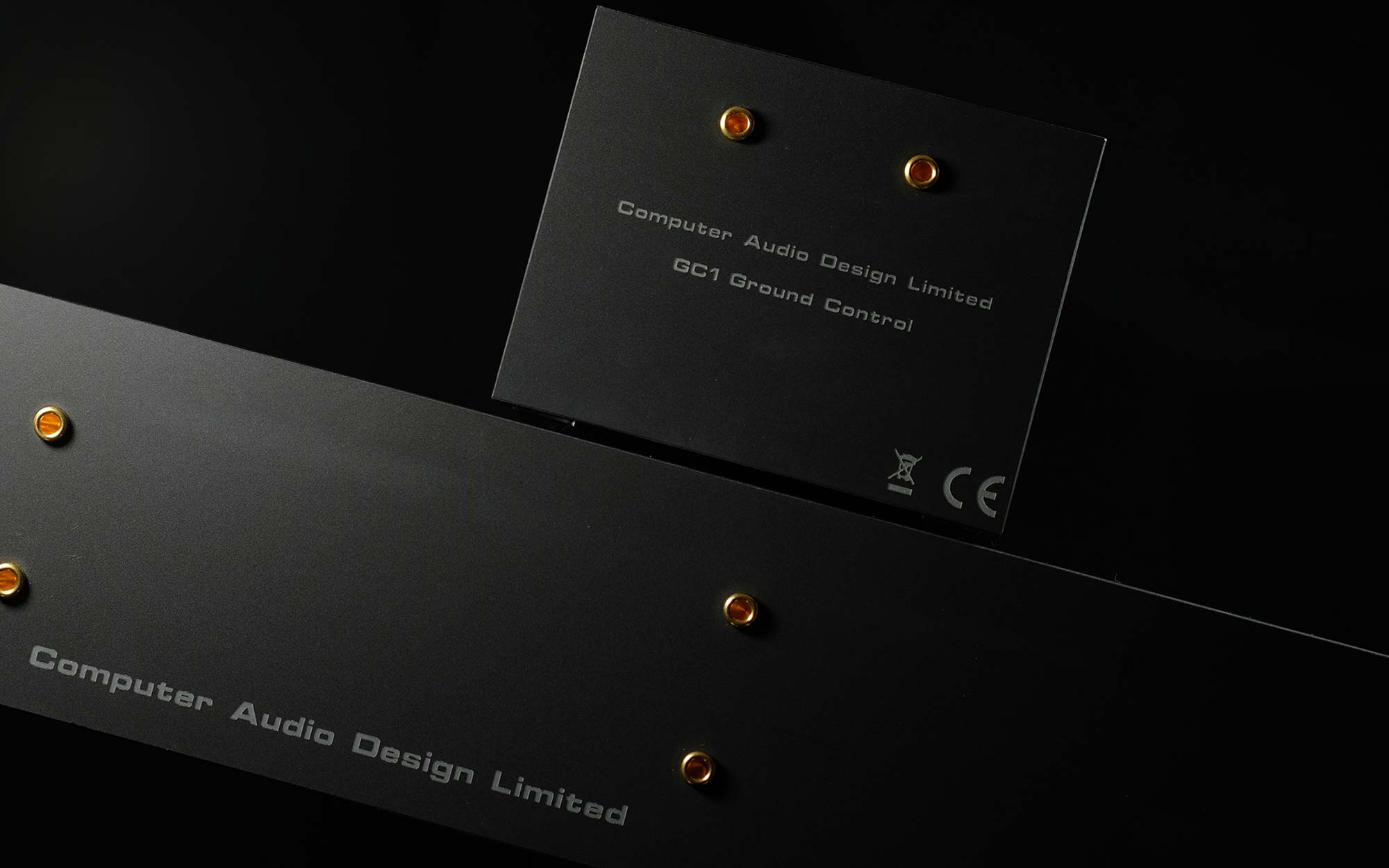

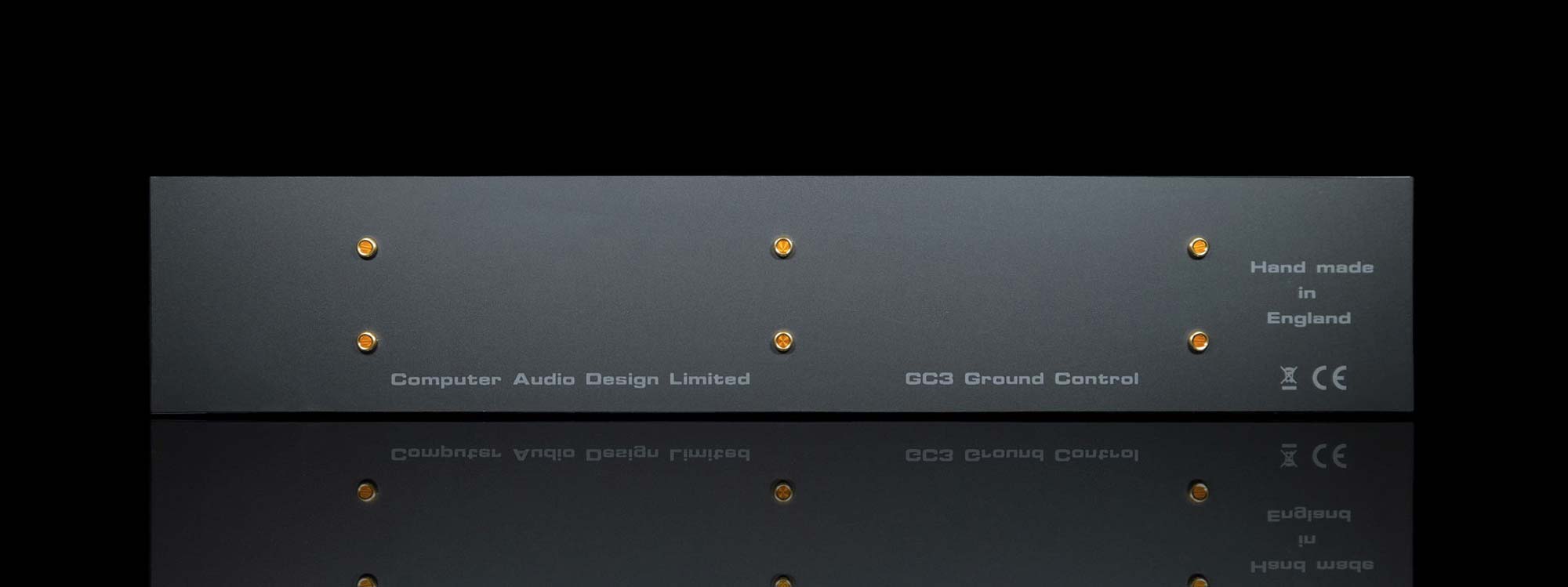

There are two 4mm banana sockets on the back on the GC1, six on the back of the GC3 and eight on the GC-R.
The GC1, GC3 or GC-R Ground Control can also be attached to Earth. If you have any type of Earth connection on your audio system or power distribution CAD can supply you a cable with an appropriate connector that will fit. The outside case of any audio component that is made from metal by law must be connected to Earth for safety. So another option is to attach a Ground Control to the case directly by loosening a case screw and inserting a Ground Control cable with a spade connector.
